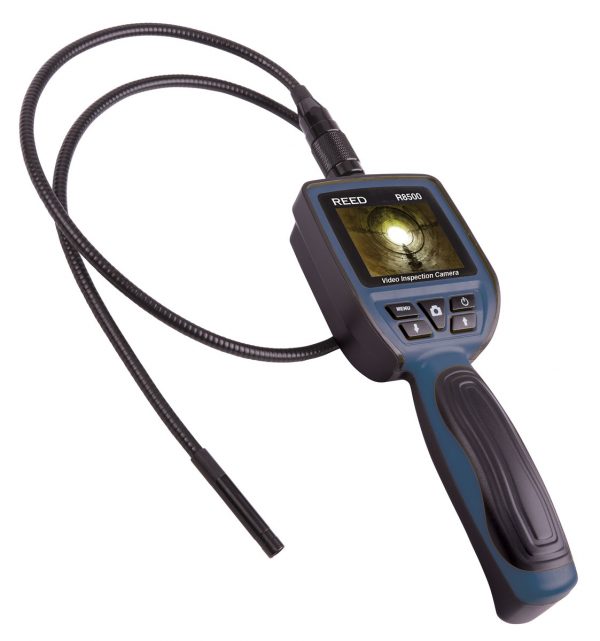

The R8500 high resolution video inspection camera features a 39" (1m) gooseneck cable with 9mm camera. The R8500 is capable of saving images and recording video on an external memory card (sold separately). Includes a camera mountable magnet, hook and mirror to assist with specific applications.
Camera | |
Lens Sensor Resolution | 640 x 480 |
Camera Diameter | 0.35″ (9mm) |
Short Distance Focus | 1.18 to 2.36″ (3 to 6cm) |
Depth of Field | 10mm to infinity |
Viewing Angle | 0 to 180° |
General Specifications | |
Display | 2.5″ Color TFT LCD |
Display Resolution | 480 x 240 |
Frames per Second (FPS) | 30 |
Standard Gooseneck/Cable Length | 39″ (1m) |
Rotate Display | Yes (180°) |
Playback | Photo (JPEG) and Video (AVI) |
Digital Zoom | 4x |
Memory | SD Card (up to 32Gb) |
Time and Date Stamp | Yes |
Data Output | USB / SD Card |
LED Brightness Adjustment | Yes (4 white LEDs) |
Low Battery Indicator | Yes |
Power Supply | 4 AA Batteries |
Auto Power Off | Yes (after 10 minutes) |
On-Screen Supported Languages | English, German, French, Spanish |
Product Certifications | CE, RoHS, IP67 (Camera Head) |
Operating Temperature | 14 to 122°F (-10 to 50°C) |
Storage Temperature | 14 to 113°F (-10 to 45°C) |
Operating Humidity Range | 15 to 85% |
Dimensions | 6 x 3 x 2″ (152 x 76 x 51 mm) |
Weight | 12.7oz (359g) |
